Displacement and reconstruction of crane SNINA 5t-22,2m to 10t-22,2m for NYPRO Malé Svatoňovice

Year or realization 2011
Customer NYPRO hutní prodej, a.s.
Place of installation Production plant of NYPRO hutní prodej, a.s. Malé Svatoňovice
Range of delivery
Task:
Reconstruction of crane VIHORLAT Snina 5t/22,2m to 10t/22,2m and its installation (displacement) to another crane way

Solution:
- Displacement of the crane
- Demounting of the existing hoist and electric wiring.
- Only bridges and end carriages remain original.
- New travel wheels of 500mm and new geared motors (power - 2x5,5 kW).
- Nosnost jeřábu je zvýšena na 10.000 kg.

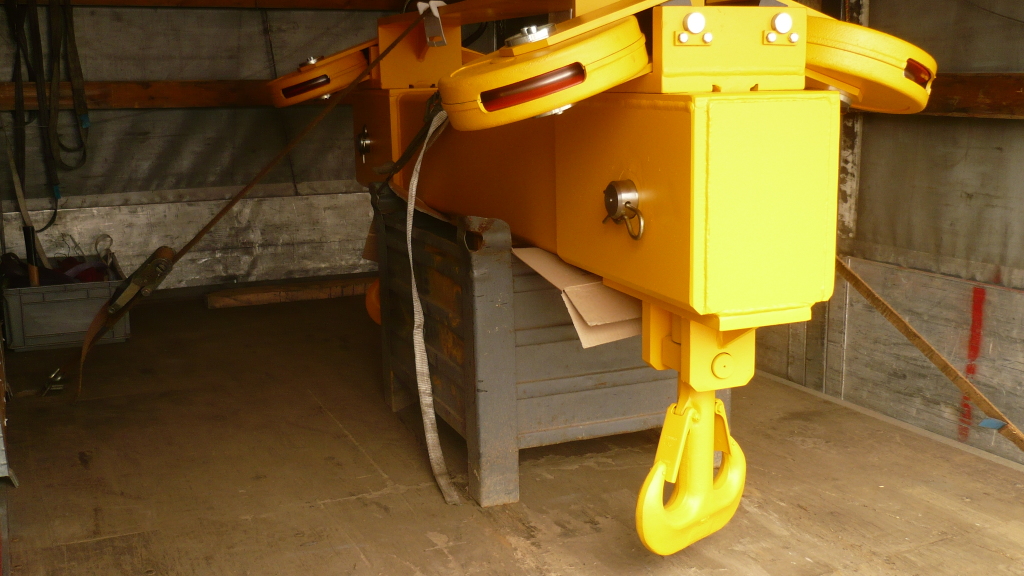

- New wire-rope hoist GSF 5025-12-4x2/1-33M,D,2B with rope stabilization on a traverse by means of trasnsferring drums an 4 pulleys on the traverse.
   - lifting capacity: 10000kg
   - lifting speed: 0.32 – 8 - 24 m/min – stepless torque regulation of lifting speed (i.e. 0.32-8m/min with a full load of 10t, and 0.32-24 m/min with a lower load; the lifting motor communicates with a frequency inverter and depending of the load, it allows maximum lifting speed)
   - travel speed: 0-32 m/min with brake – stepless speed regulation
- New electric switchboard.
- Complete new festoon cable system and new wiring, trolley current collectores.
- Crane controle is provided by remote control of HBC type with prepared control elements for the magnet traverse.

Original crane SNINA 5t-22,2m

Obraz118Obraz119Obraz120Obraz121Obraz124Obraz126

Reconstruction of the bridge crane to 10t-22,2m
