Underhung Bridge Cranes



Standard parameters of cranes

  • Crane capacity: up to 25 t
  • Crane span: up to 40 m
  • Lifting height: up to 60 m
  • Lifting speed: two-speed (with micro-lifting)
  • Hoist travel speed: two-speed – 5/20  m/min
  • Crane travel speed: with smooth speed regulation - 0 - 40 m/min
  • With GIGA hoists: with low headroom design or with electric chain hoists
  • Hoist power supply: with flat cable or energo-chain
  • Control: with independently moving pendant station or remote radio control
  • Ambient temperature: -5 to +40 °C (indoor environment)
  • Operating voltage: 400 V, 50 Hz
  • Crane power supply: power supply trolley

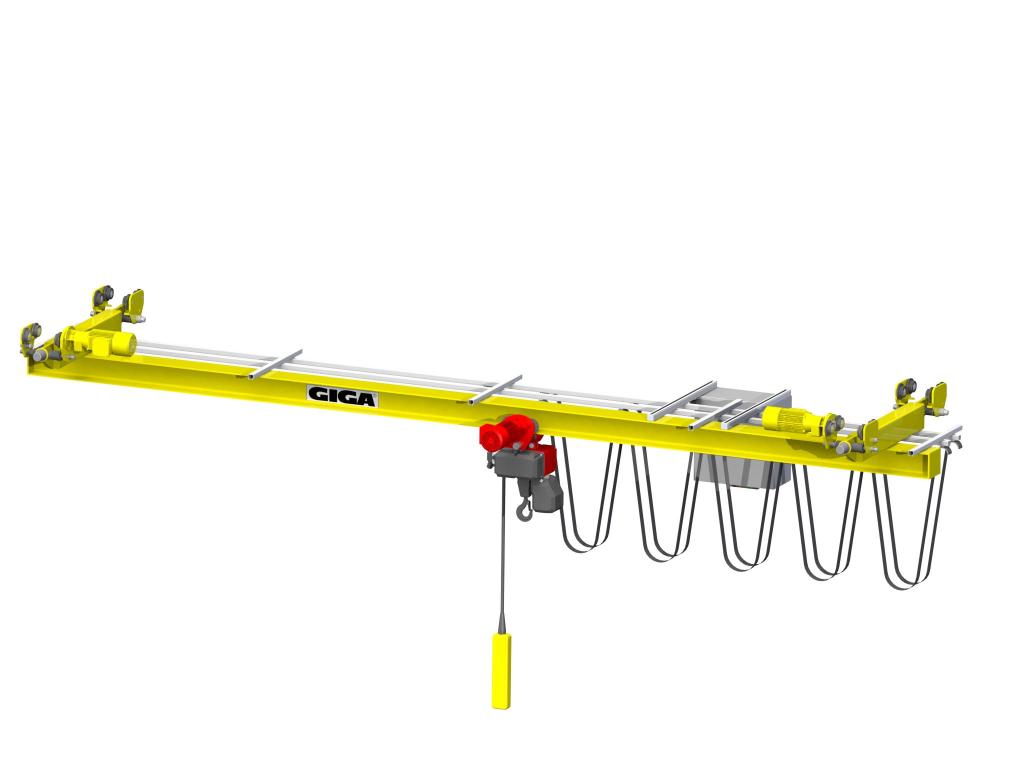

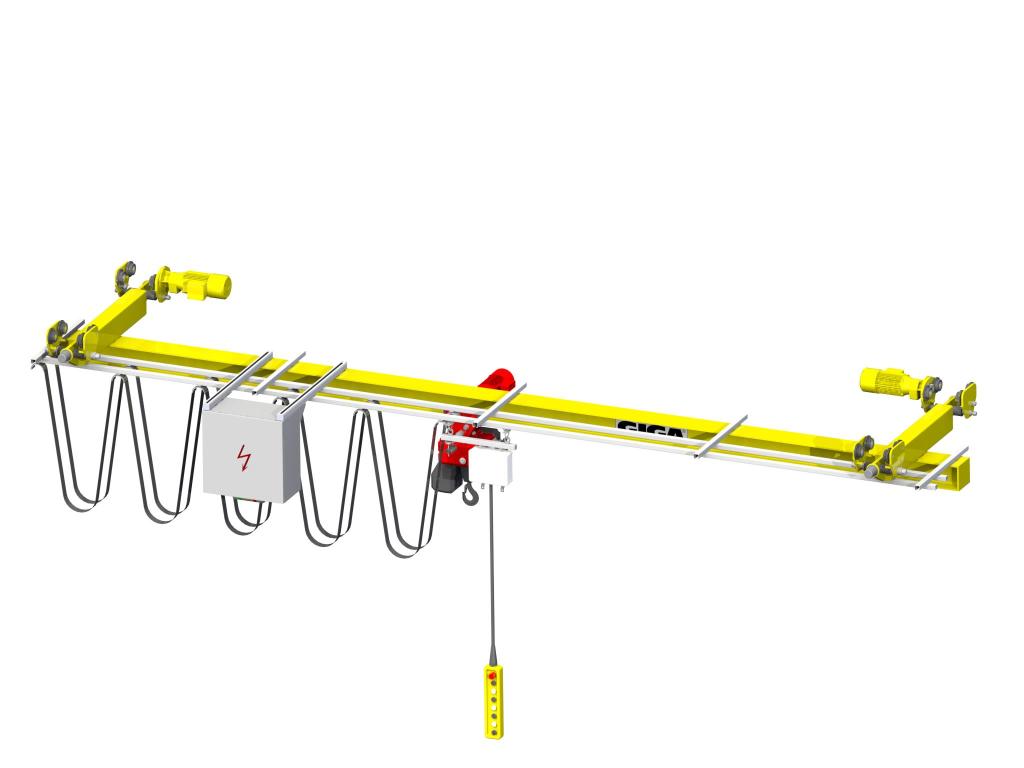

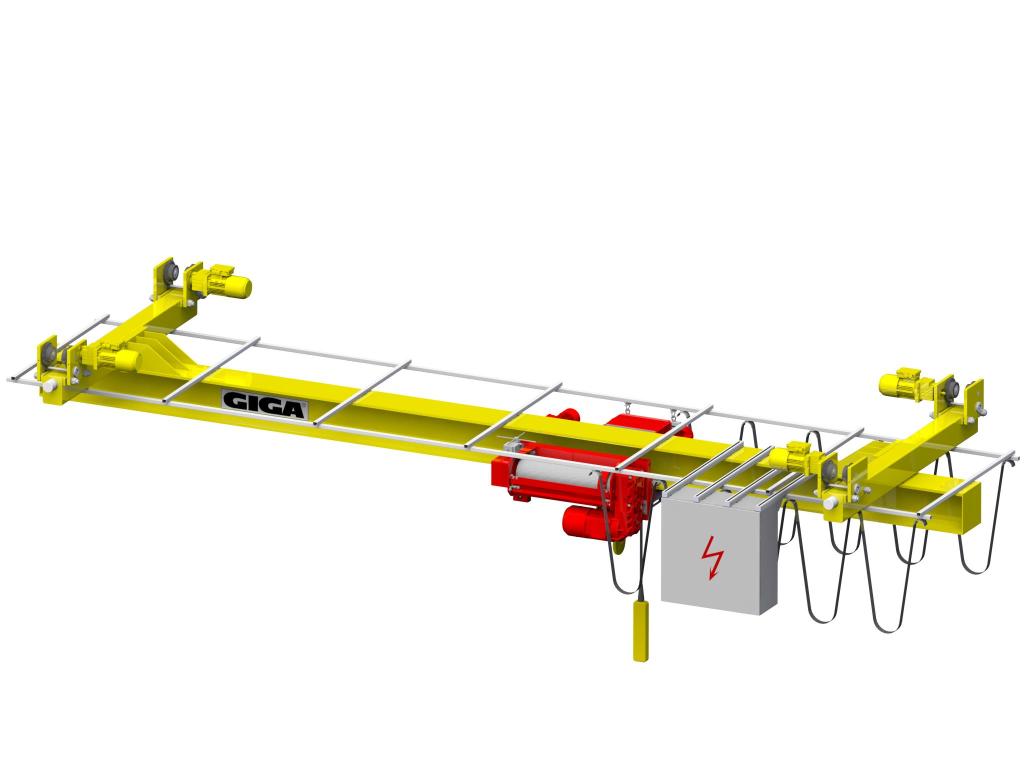

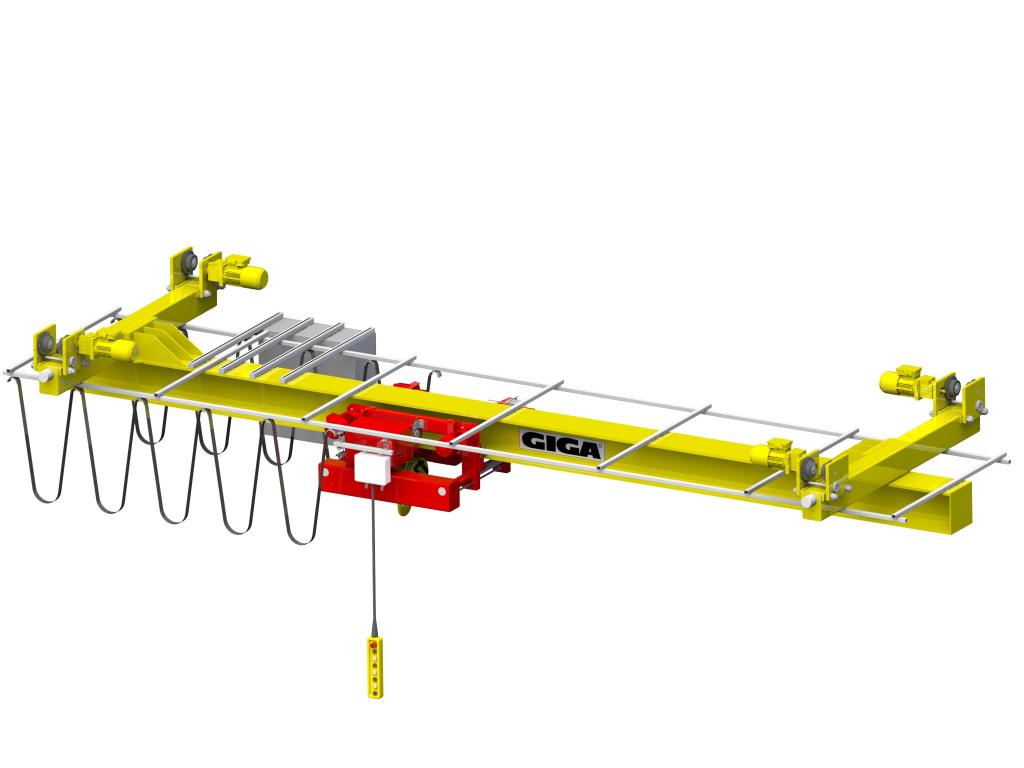

3D models of underhung bridge cranes

GPMJ 5-6m_podves_3591-11-2GPMJ 5-6m_podves_3591-11-1GPMJ 3t-16,5m_podves_5295-18GPMJ 1t-4m_podves_5203-18-2GPMJ 1t-4m_podves_5203-18-1


Non-standard parameters of cranes (at extra cost)

  • Lifting speed: with smooth speed regulation
  • Hoist travel speed: with smooth speed regulation 0 - 20 m/min
  • Non-commercial weighing
  • Anti-collision device
  • Special environment: outdoor, aggressive, hot, etc.
  • Covering against radiant heating
